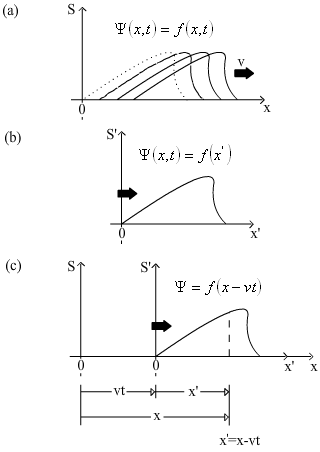

Mathematical description of traveling wave (行波)
|
Wave function (波函数): describes the position of any particle in the medium at any time
The above wave function satisfies the following one-dimensional wave equation
|
![](pic/chapter15.6.gif) |
|
|
Mathematical description of a wave |
sinusoidal wave moving in +x-direction
Wave number (波数):
Phase (相位): ![](pic/15.07.3.gif)
|
![](pic/chapter15.7.gif) |
|
|

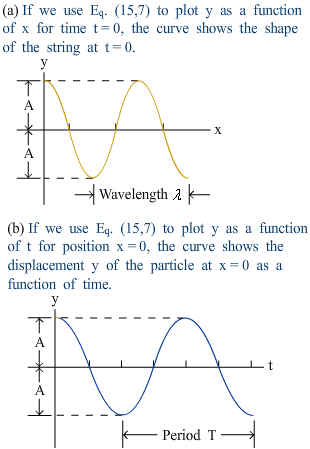

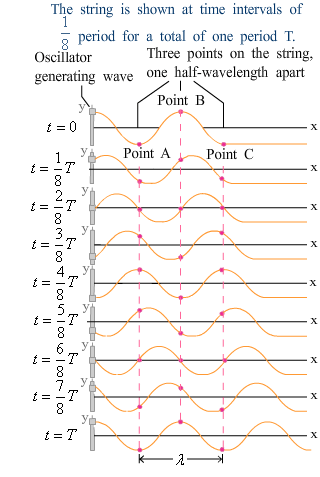

Graphing wave functions |
For wave moving in -x-direction
Phase velocity (相速度): speed of wave moving alongside a point of constant phase
|
![](pic/chapter15.8.gif) |
|
|
Particle velocity and acceleration in a sinusoidal wave |
|
![](pic/15.09.1.gif) |
|
Speed of a transverse wave |
|
|

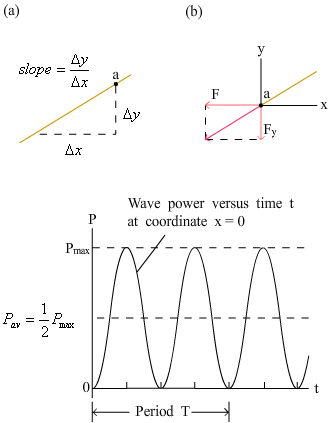

Energy in wave motion |
Assuming: ![](pic/15.11.2.gif)
|
![](pic/chapter15.11.gif) |
|
|

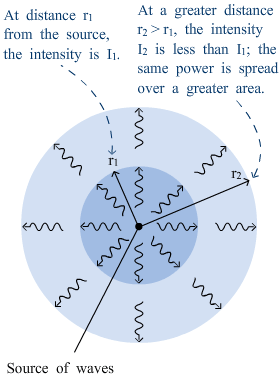

Wave intensity |
For waves that travel in 3-D, the intensity is defined as the average power per unit area.?
|
![](pic/chapter15.12.gif) |
|
|
